NISE 2210/2210E采用Intel® Atom? 雙核 D2550 CPU，具有圖形處理和運算性能。NISE 2210/2210E可用于工業自動化、自助服務機如KIOSK 內檢機、回收機以及工廠自動化等應用。NISE 2210/2210E支持多個I/O，支持6x COM (2x RS232/422/485，帶隔離保護)和6x USB 2.0。另外，NISE 2200/2210E支持9V 到 36V寬壓DC輸入，寬溫操作和1個PCI或PCIe擴展。
| CPU | OnBoard Intel® Atom? Dual Core D2550 processor, 1.86GHz, 1M L2 cache Intel® 82801JIR ICH10 RAID |
| 內存 | 2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECC Pre-install 4G Memory as the manufacture configuration for shipment |
| 雙獨立顯示選項 | HDMI + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type) HDMI + DVI-D (P/N: 60233DVI18X00, 1.8M cable, from DVI-I to DVI-D male type) |

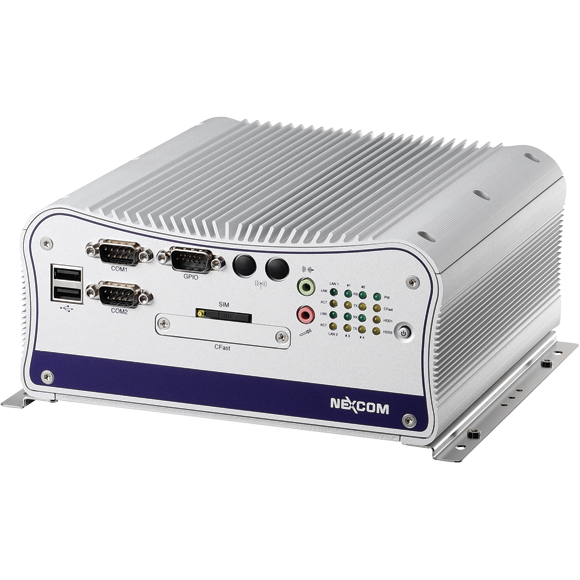

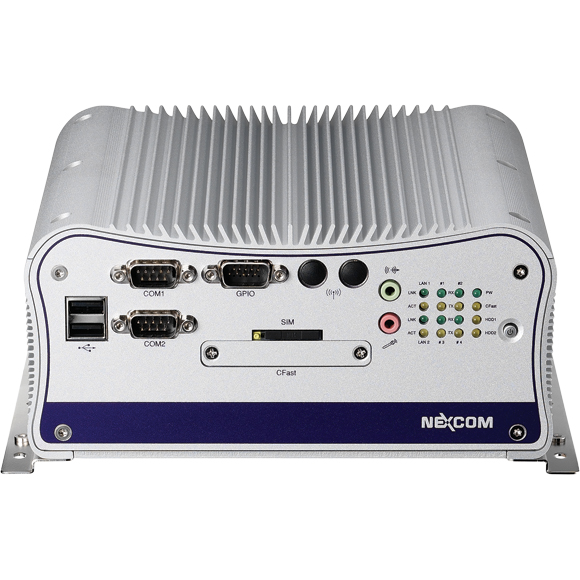

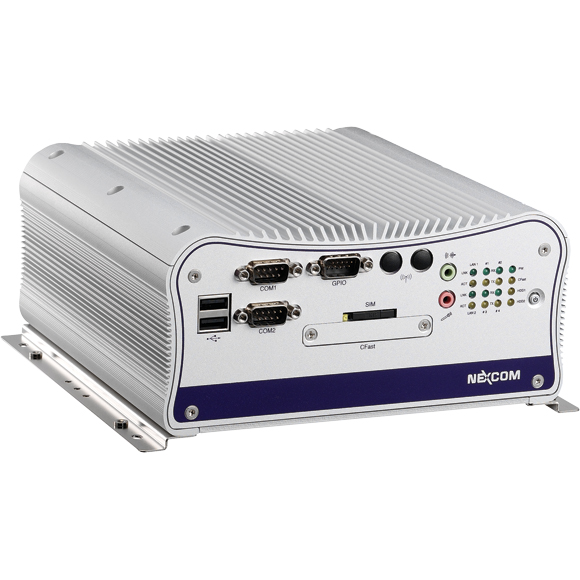

| 前置I/O界面 | ATX Power on/off switch HDD access/ power status LEDs 2x DB9, RS232/422/485 w/ 2.5KV isolation protection 2x USB2.0 1x DB15, 4x GPI & 4x GPO 1x Mic-in & 1x Line out SIM card socket CFast socket 2x antenna holes |

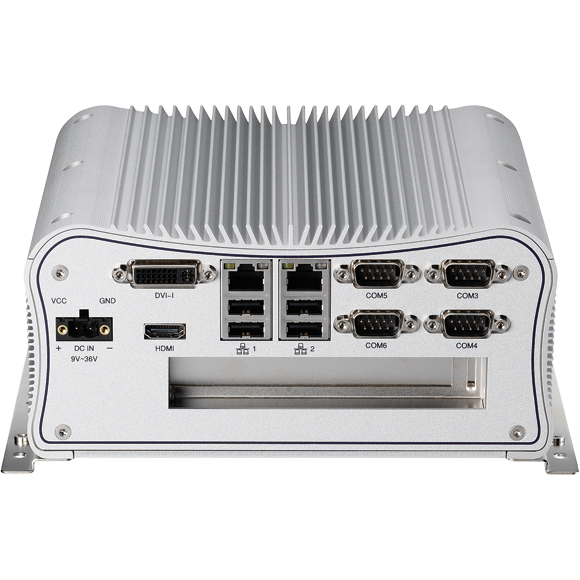

| 后置I/O界面 | 1x 2-pin DC input, Support +9 to 36VDC input 1x HDMI 1x DVI-I Dual Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE ??4x USB2.0 ??2x DB9, RS232/422/485 ??2x DB9, RS232 only |
| 設備 | 1x 2.5” SATA HDD driver bay 1x External CFast socket 1x External SIM card socket 1x internal Mini-PCIe socket (Support optional WiFi or 3.5G wireless module, jumper free) |
| 擴展 | NISE 2210: One PCI Expansion - Add-on card length: 176mm max. - Power consumption: 10W/slot max. NISE 2210E: One PCIe x4 Expansion (w/o Mini-PCIe device) - Add-on card length: 176mm max. - Power consumption: 10W/slot max. - Note: if Mini-PCIe device is installed, only supports PCIe x1) |
| 電源需求 | Support +9 to 36VDC input; Support ATX power mode Optional 19V, 65W power adapter |
| 尺寸 | 195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”) |
| 構造 | Aluminum Chassis with fanless design |
| 運行環境 | Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade device Storage temperature: -30°C to 85°C Relative humidity: 10% to 93% (Non-condensing) Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 40G, half sine, 11ms, IEC60068-2-27 Vibration protection w/HDD condition - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6 |
| 認證 | CE approval FCC Class A |
| OS Support List | Windows XP 32bits Windows 7 32bits WinCE 7.0 |
