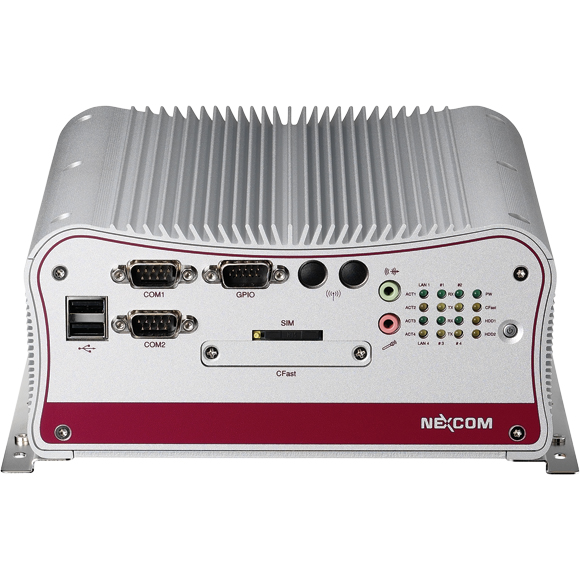

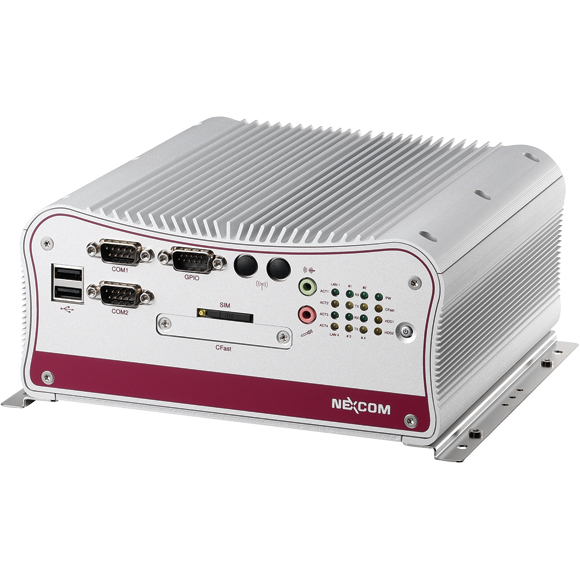

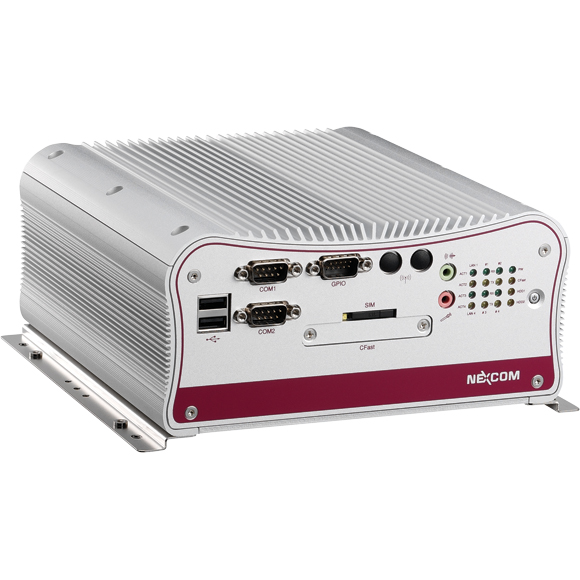

NISE 2310/2310E 基于Intel® Atom? 雙核 D2550處理器，是一款用于工業自動化的無風扇工業計算機。支持寬溫操作，可在嚴苛、惡劣的環境下運行。NISE 2310/2310E遵循了NISE系列無風扇、線纜少的設計理念。在設計上，NISE 2310/2310E配置了4x LAN端口；支持WoL、LAN teaming和PXE功能。另外，NISE 2310/2310E還提供6x USB2.0，雙獨立顯示和圖形處理性能，可滿足多種應用需求，1個PCI或PCIe x1擴展可供選擇。NISE 2310/2310E系列支持+9V 到 36V 寬壓DC輸入。

CPU	OnBoard Intel® Atom? Dual Core D2550 processor, 1.86GHz, 1M L2 cache Intel® 82801JIR ICH10 RAID
內存	2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECC Pre-install 4G memory as the manufacture configuration for shipment
雙獨立顯示選項	DVI-D + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type) DVI-D + DVI-D
前置I/O界面	ATX Power on/off switch HDD access/ power status LEDs 2x DB9, RS232/422/485 w/ 2.5KV isolation protection 2x USB2.0 4x GPO & 4x GPI 1x Mic-in and 1x Line-out SIM card socket CFast socket 2x antenna holes

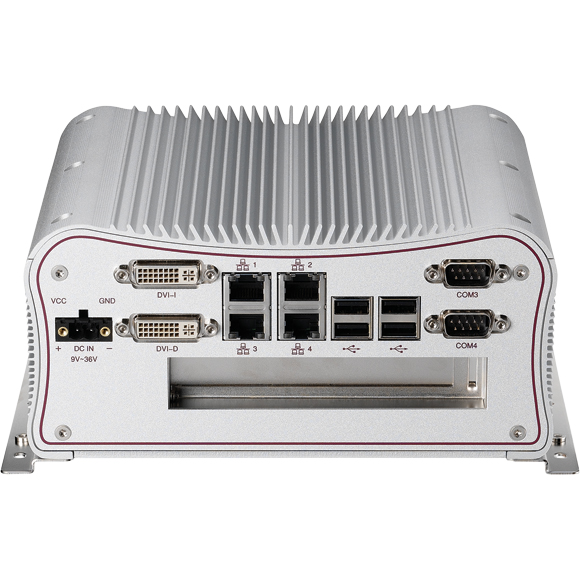

后置I/O界面	1x 2-pin DC input, Support +9 to 36VDC input 1x DVI-I 1x DVI-D 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE 4x USB2.0 2x DB9, RS232/422/485
設備	1x 2.5” SATA HDD driver bay 1x External CFast socket 1x External SIM card socket 1x internal Mini-PCIe socket (Support optional WiFi or 3.5G wireless module, jumper free)
擴展	NISE 2310: One PCI Expansion Add-on card length: 176mm max. Power consumption: 10W/slot max. NISE 2310E: One PCIe x1 Expansion Add-on card length: 176mm max. Power consumption: 10W/slot max.
電源需求	Support +9V to 36VDC input; Support ATX power mode
尺寸	195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”)
構造	Aluminum Chassis with fanless design
運行環境	Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade device Storage temperature: -30°C to 85°C Relative humidity: 10% to 93% (Non-condensing) Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 40G, half sine, 11ms, IEC60068-2-27 Vibration protection w/HDD - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
認證	CE approval FCC Class A
OS Support List	Windows XP 32bits Windows 7 32bits WinCE 7.0
